Standard APG Epoxy Resin Automatic Pressure Gelation Molding Machine HAPG-880

This model of apg equipment integrates advanced automation components such as servo hydraulics, PLC, and human-machine interface. It integrates automatic temperature control, automatic pressure maintenance, safety alarms, and multi-level password management, significantly enhancing production efficiency and product quality.

2. The template heating is achieved through PLC and temperature control module, using PID closed-loop control. The operation is simple, the stability is strong, and the temperature control is precise. The human-machine interface displays the temperature in real time and supports automatic heating at regular intervals.

3. The servo hydraulic system is composed of servo drivers, servo motors, encoders, pressure sensors, etc., enabling closed-loop control of flow and pressure. It features high response, high precision, high efficiency, low energy consumption, and low noise.

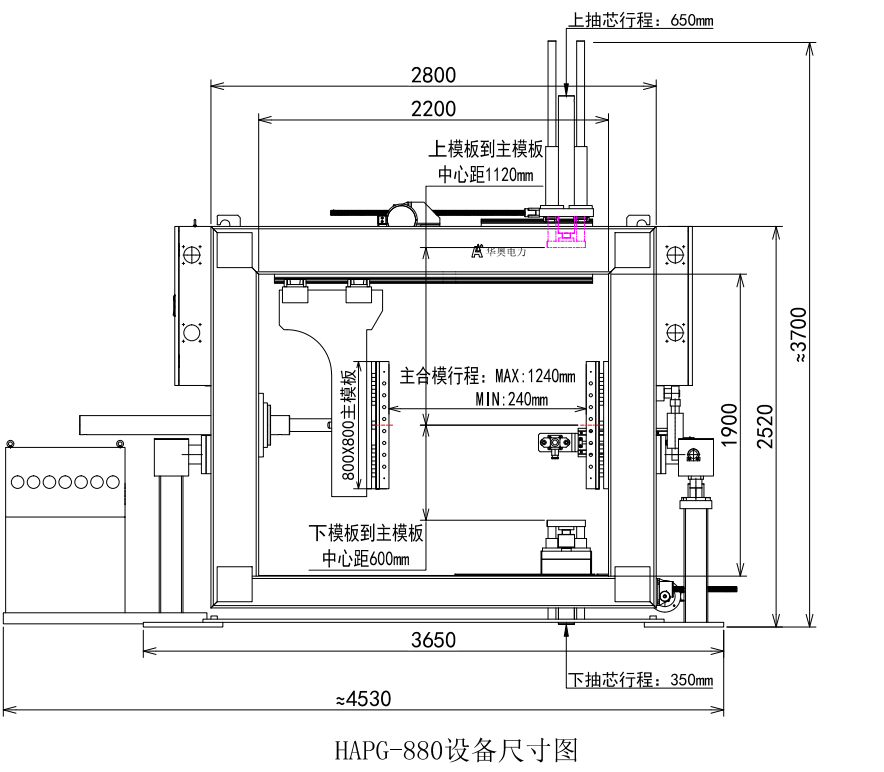

4. This series is a standard APG epoxy resin pressure gel molding machine. The minimum size of the template is 800X800mm, which can meet the production requirements for 11-36KV epoxy products, such as transformers, insulators, bushings, contact boxes, SF6 insulation covers, etc. The travel distance of the upper and lower core extraction can be customized according to the production requirements. For example, if the core extraction exceeds 500mm, a pit needs to be excavated.

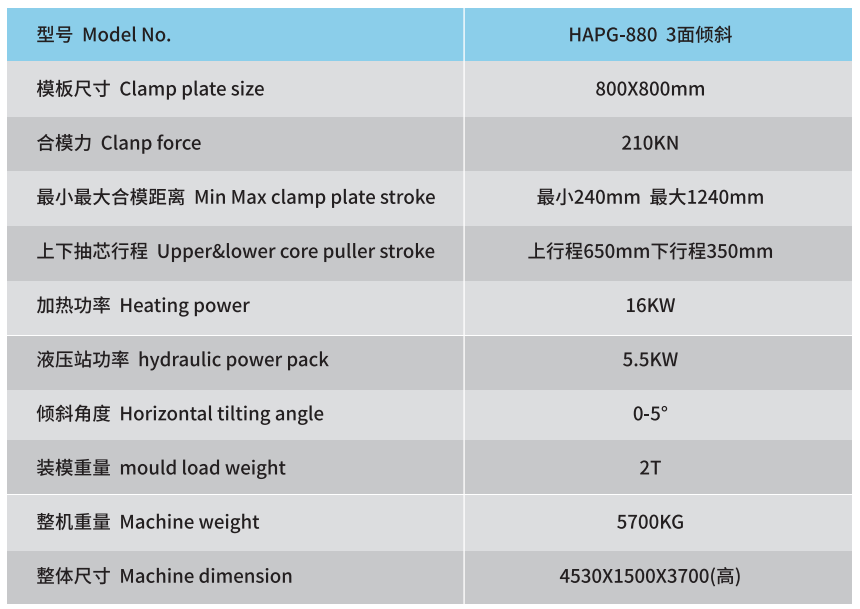

5. Main technical parameters:
