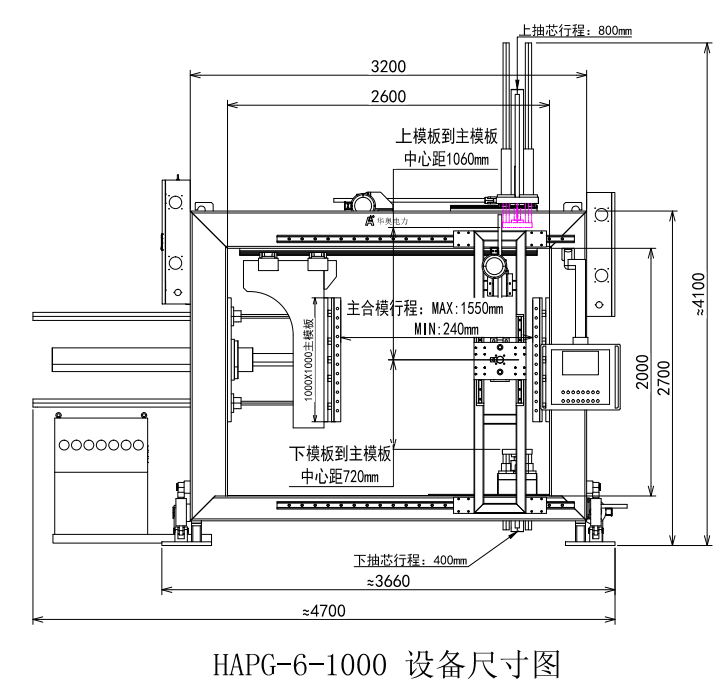

Six-sided core-pulling epoxy resin automatic pressure gel molding machine HAPG-6-100

This model of apg equipment integrates advanced automation components such as servo hydraulics, PLC, and human-machine interface. It integrates automatic temperature control, automatic pressure maintenance, safety alarms, and multi-level password management, significantly enhancing production efficiency and product quality.

2. The template heating is achieved through PLC and temperature control module, using PID closed-loop control. The operation is simple, the stability is strong, and the temperature control is precise. The human-machine interface displays the temperature in real time and supports automatic heating at regular intervals.

3. The servo hydraulic system is composed of servo drivers, servo motors, encoders, pressure sensors, etc., enabling closed-loop control of flow and pressure. It features high response, high precision, high efficiency, low energy consumption, and low noise.

4. Application: This APG equipment is a six-sided machine. It can eject cores in all four directions (up, down, left, and right). The core ejection motion is automatically controlled by a hydraulic cylinder, which increases the overall height of the machine and enhances...

The lower core ejection stroke is designed to meet the production requirements of specific products, and is particularly suitable for the manufacturing of solid-sealed terminals and the ZW32 circuit breaker.

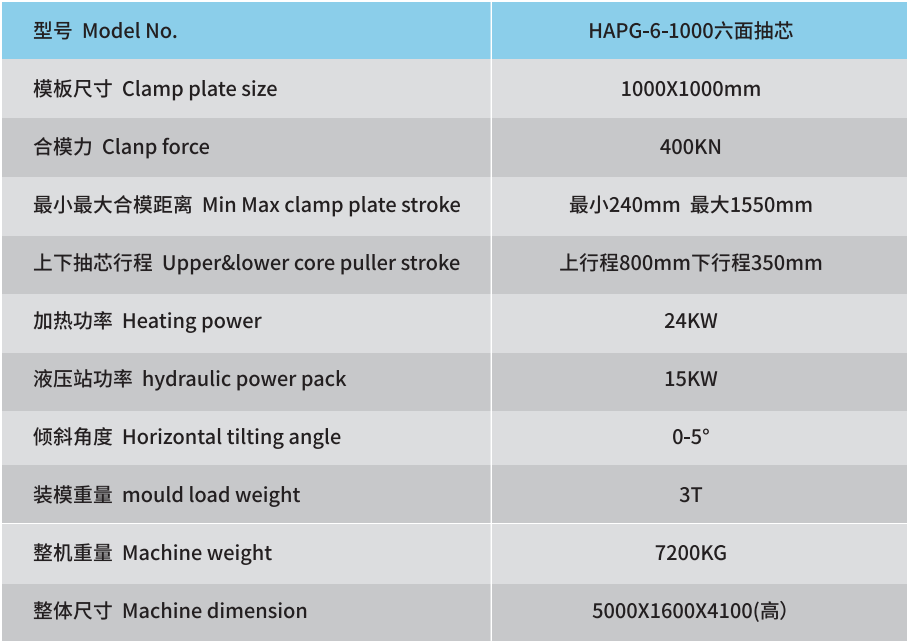

5. Main technical parameters:
