Two-station APG epoxy resin automatic pressure gel molding machine HAPG-880-2

This model of apg equipment integrates advanced automation components such as servo hydraulics, PLC, and human-machine interface. It integrates automatic temperature control, automatic pressure maintenance, safety alarms, and multi-level password management, significantly enhancing production efficiency and product quality.

2. The template heating is achieved through PLC and temperature control module, using PID closed-loop control. The operation is simple, the stability is strong, and the temperature control is precise. The human-machine interface displays the temperature in real time and supports automatic heating at regular intervals.

3. The servo hydraulic system is composed of servo drivers, servo motors, encoders, pressure sensors, etc., enabling closed-loop control of flow and pressure. It features high response, high precision, high efficiency, low energy consumption, and low noise.

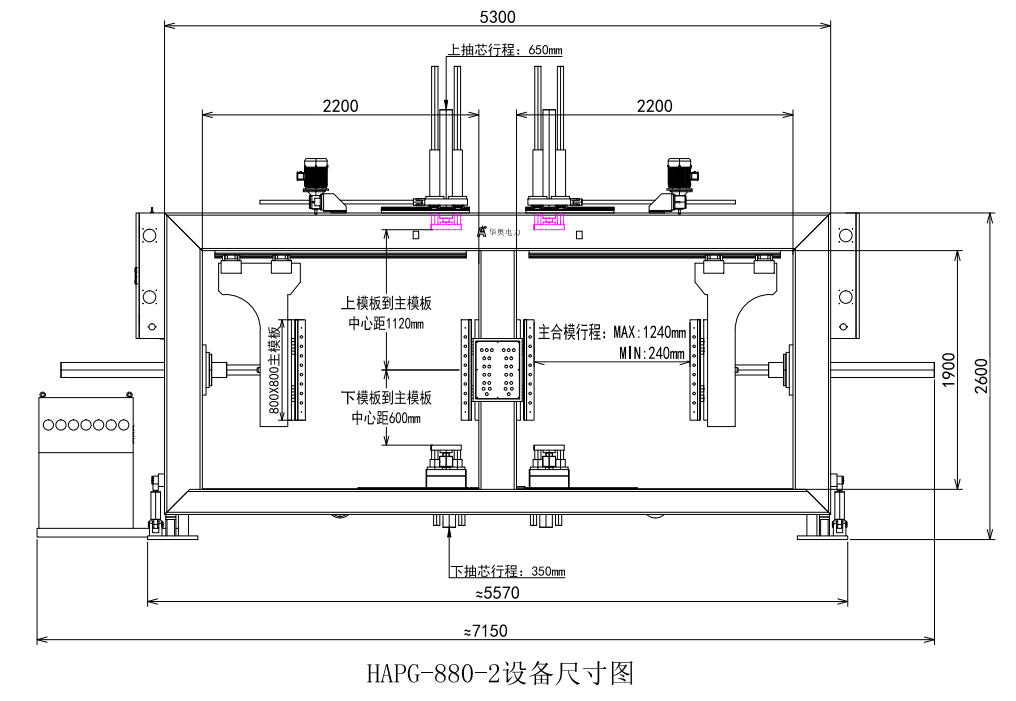

4. This machine is a dual-station APG epoxy resin pressure gel molding machine. The template size is 800X800mm. It can support the production of two sets of molds simultaneously, significantly improving production efficiency. It is particularly suitable for products with simple structures, such as insulators, bushings, sensors, etc.

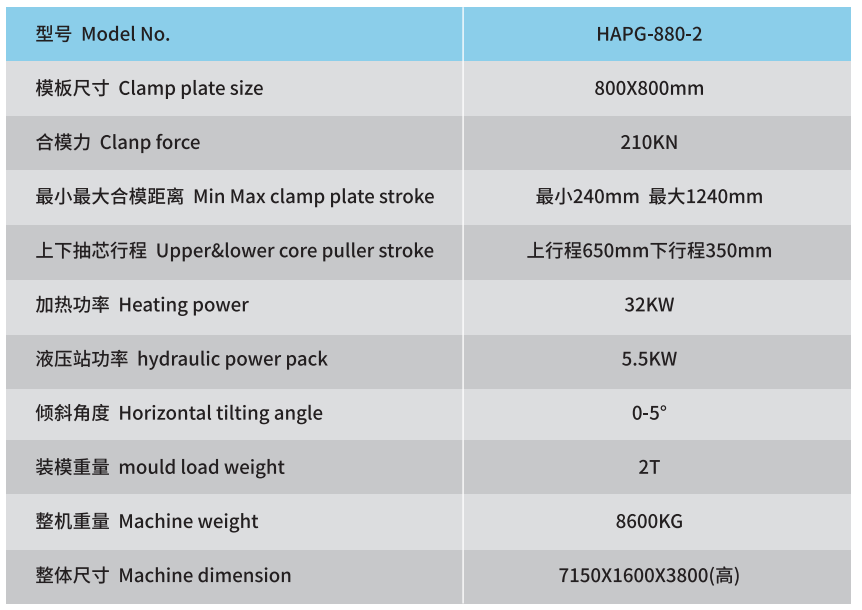

5. Main technical parameters:
